ExpoDeck

ExpoDeck is a multi-level double deck structure designed for indoor use. ExpoDeck is extremely strong, light, safe, and fast setting. ExpoDeck can be reconfigured into multiple shapes and sizes as it incorporates common components with a standardized “grid”.

ExpoDeck primarily consists of extruded aluminum. ExpoDeck also employs steel, powder-coated portal columns for the main support. The ExpoDeck staircase is aluminum but is also powder-coated. Beams are aluminum with a clear anodized finish. The curbing and upper guardrail (FlexRail) are aluminum with a clear anodized finish and frosted acrylic in-fills. The staircase hand/guardrail (FlexRail) is aluminum with a clear anodized finish and frosted acrylic in-fills. Deck panels have an unfinished plywood top and a low-nap dark grey carpet on the bottom.

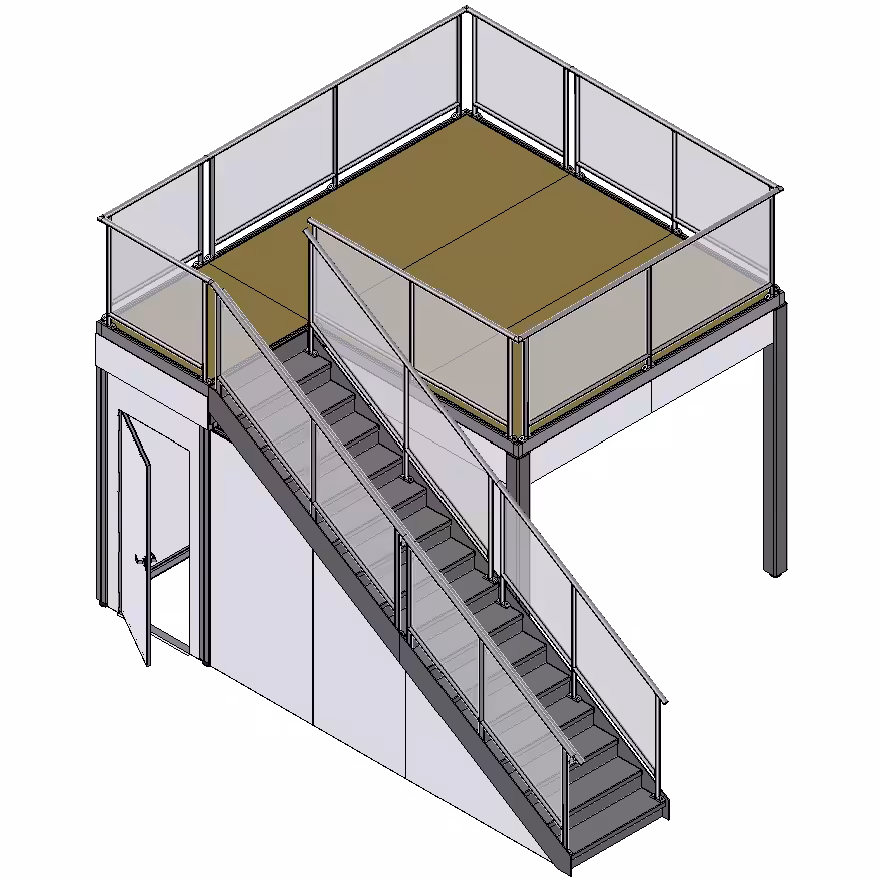

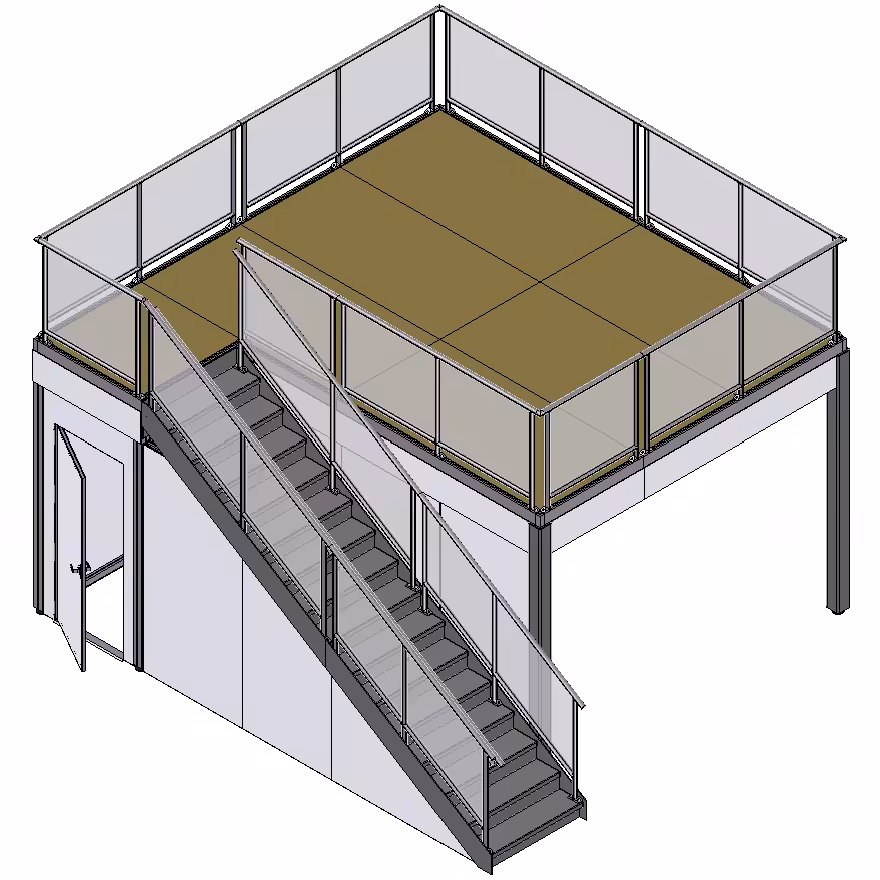

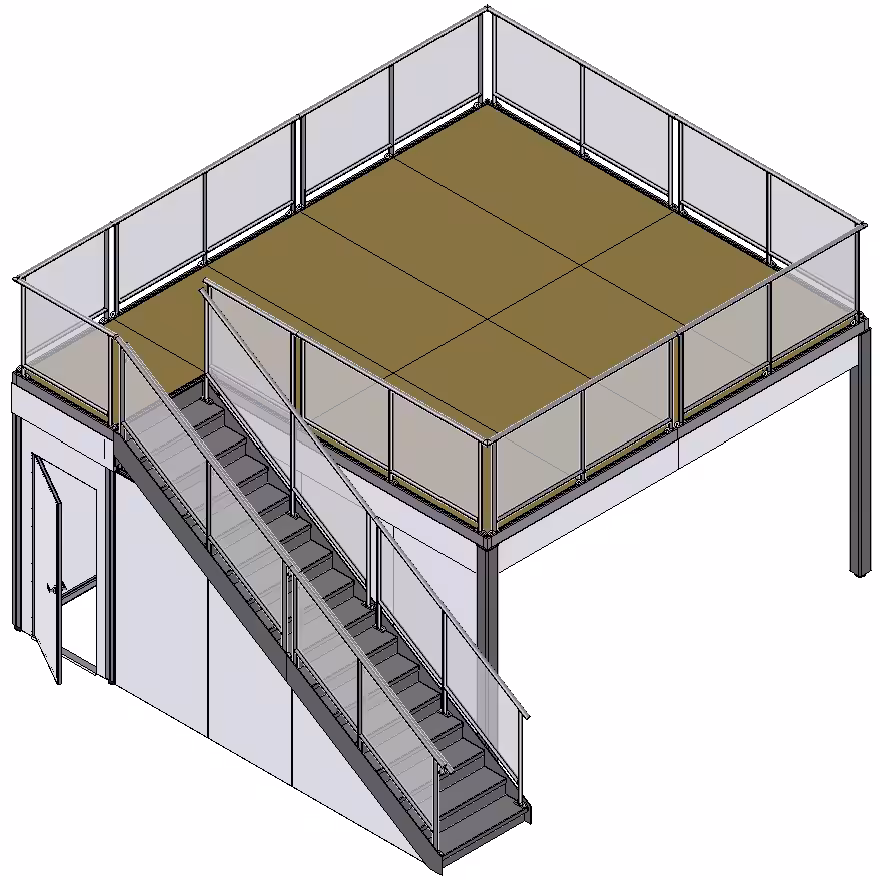

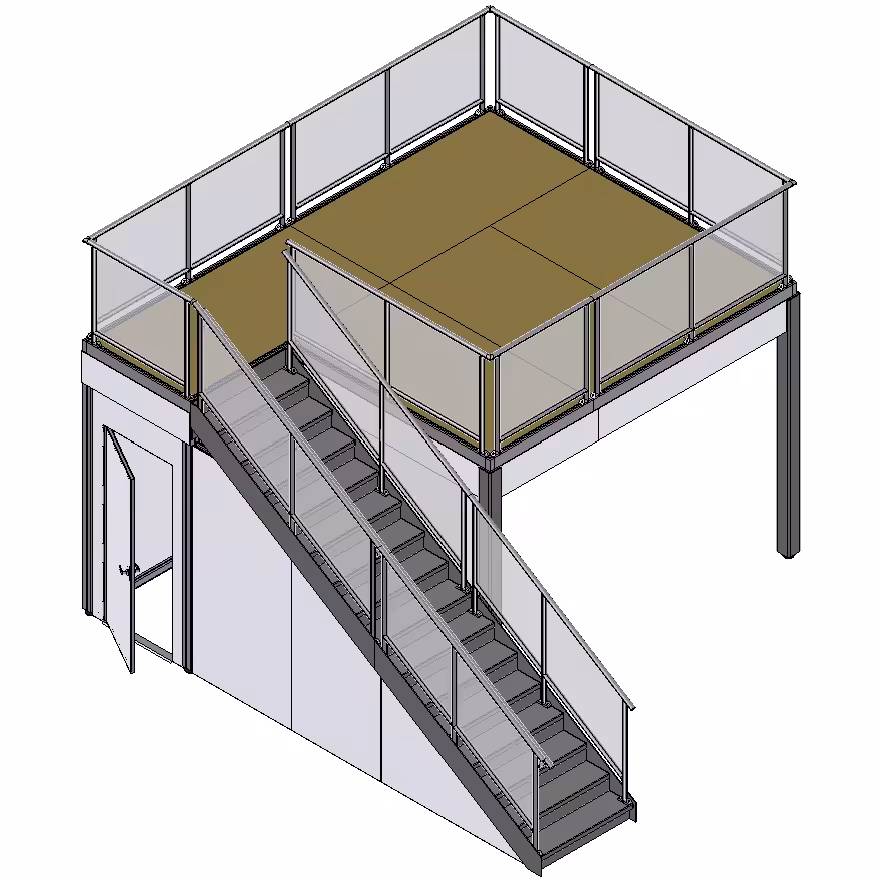

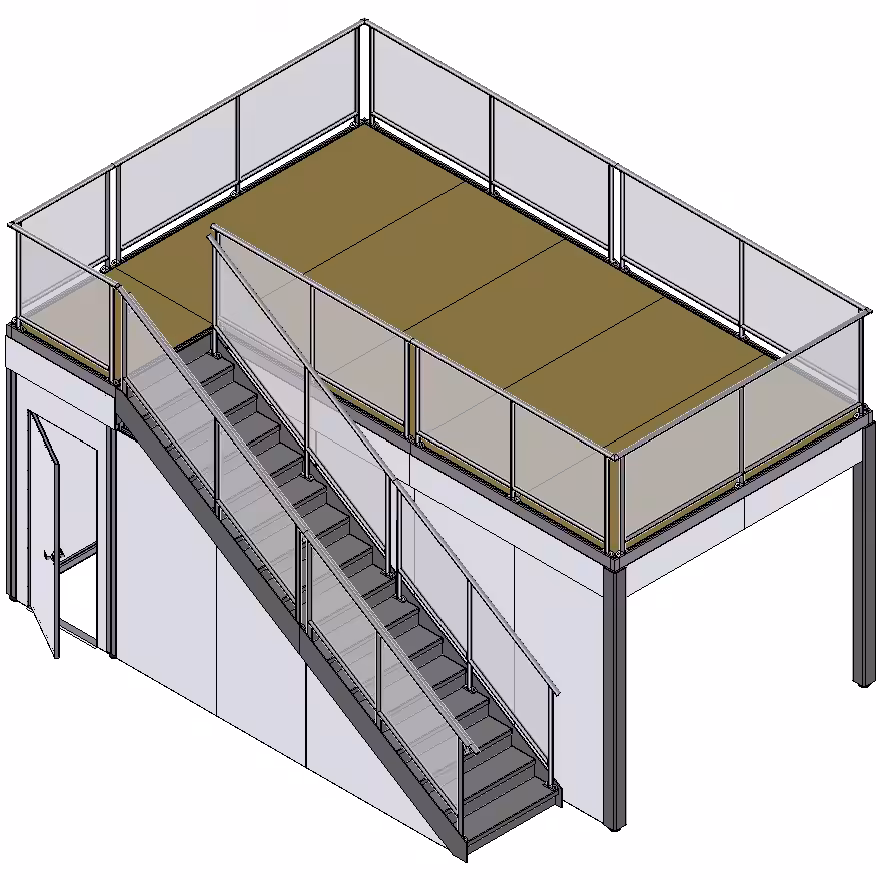

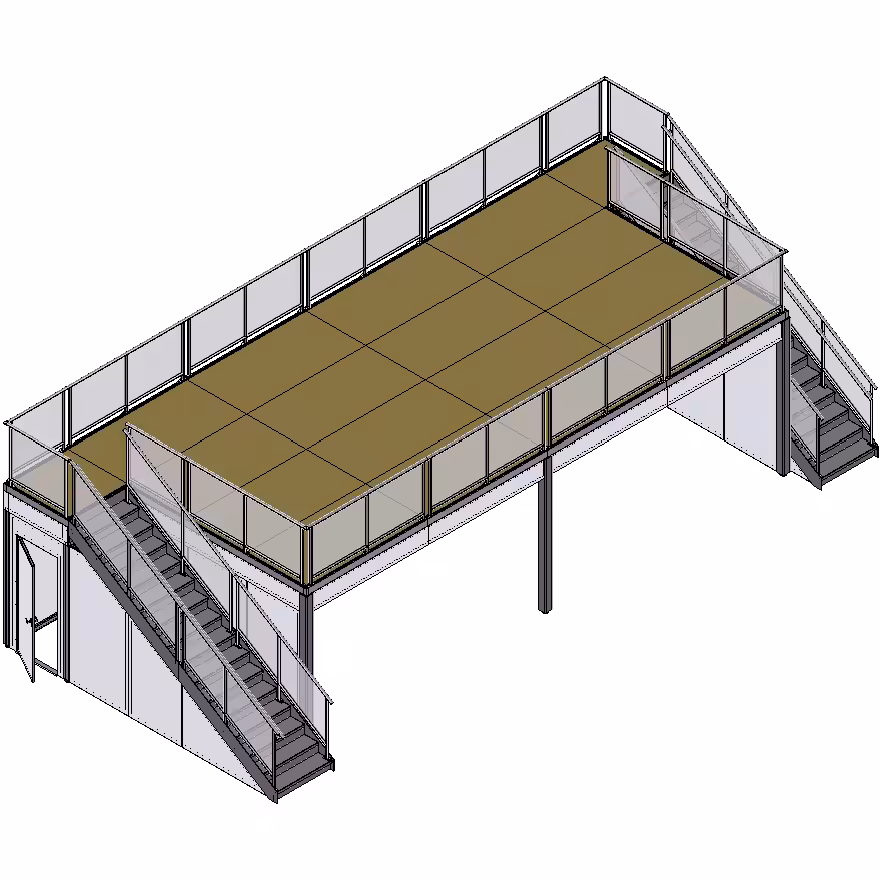

Yes, Highmark rents ExpoDeck in two ways: pre-built rental kits and custom rentals. Pre-built kits are on the shelf and finished, requiring no engineering or fabrication time, so they are aggressively priced. There are eight (8) rental kit sizes, ranging from 10’x12’ to 20’x20’. Custom rental involves using standard inventory to create a unique size or shape. For example, while there is a 16’x16’ rental kit, the Exhibit House may need a deck twice the size, such as 32’x16’. Highmark uses its extensive rental inventory to create a 32’x16’ deck with standard components and applies a rental price to the structure.

Highmark has pricing assembled for the pre-built rental kits only. Custom rental pricing can be acquired on a per project basis as the shape and size of the ExpoDeck is often different when offered via custom rental.

Yes, new purchase pricing can be acquired on a per project basis as the shape and size of the ExpoDeck is often different.

Yes, 3D models and design drawings are available for rental kits + other common sizes on the Highmark website. Custom rental projects and new purchase project models/designs are available per project.

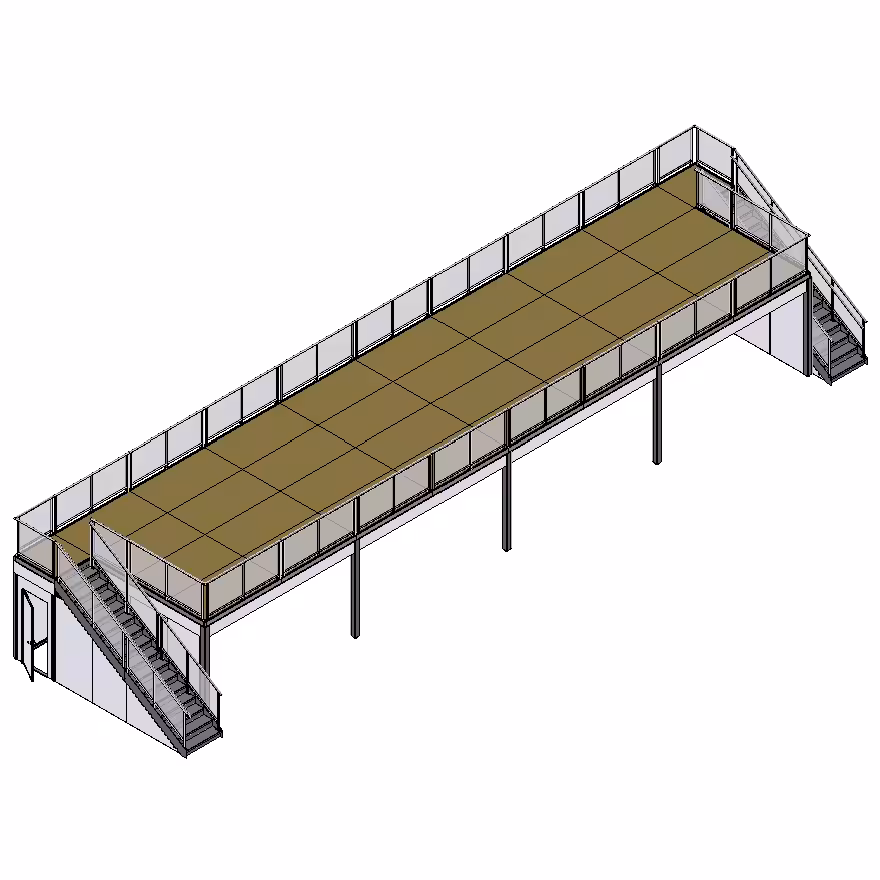

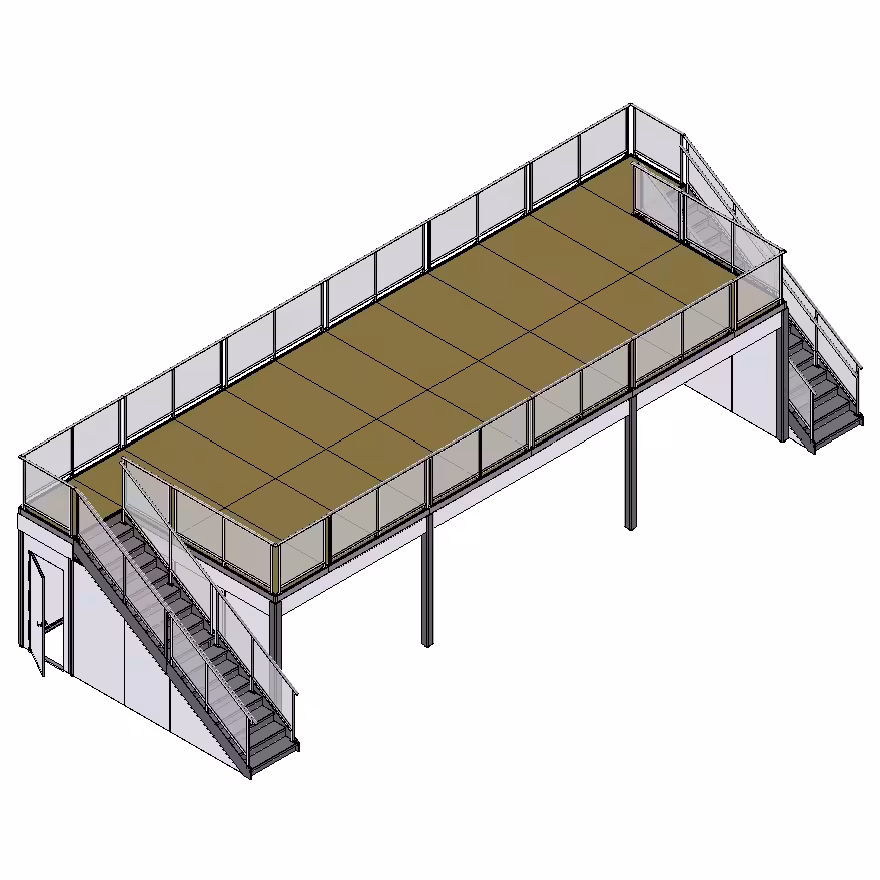

ExpoDeck is predicated on a 4’x8’ grid system (the size of a standard deck panel). Standard beam sizes are 4’, 8’, 12’, 16’, and 20’. Any double deck design derivative of this grid can be accomplished with standard components; i.e. 12’x20’, 16’x16’, 32’x24’, 48’x64’, etc.

16’ Without supplemental columns under the span. 20’ With supplemental columns. Up to 30’ can also be achieved with custom components and supplemental columns.

Yes, a third-party structural engineering reviews and stamps all Highmark ExpoDecks per project with an active load rating of 100 lbs. per square foot.

The ExpoDeck product is engineered with an active live load rating of 100 lbs. per square foot; however maximum occupancy is determined by the fire marshal in the Exhibit Hall’s respective county. Fire marshals figure occupancy based on total square feet of the structure and number of egress (staircases); i.e. in the event of an emergency, how many people can safely descend the structure and evacuate the hall. Convention halls can vary in regulation, but definitive information can be found in the rules and regulations section of the association’s show manual. As a general rule, double deck structures with one staircase or less than 300 sqft. in total size have a maximum occupancy of 9 people.

Included is the entire deck structure, as well as documentation, stamped drawings, packaging, hardware, and tools. From the ground floor: leveling feet, portal columns, t-slot columns with heads, beams, deck panels, curbing, upper guardrail, staircase, staircase hand/guardrail, all crating/skidding, stamped drawings, setup drawings, and all the necessary tools/hardware for installation and dismantling.

All columns and beams are packed on a rolling cart, staircases are packed with hand/guardrail on one custom pallet per staircase, upper guardrail is packed on a custom pallet, deck panels are packed on a reinforced pallet, all documentation + tools/hardware are packed in a hardware crate.

Weight of course will vary by size, but a general estimate with shipping containers can be provided during the estimating process.

The Exhibitor Appointed Contractor (EAC) will install and dismantle Highmark ExpoDeck. Highmark can make recommendations to the client of trained EAC groups. For an additional cost, Highmark can also offer a supervisor to work with the client’s EAC

Highmark stores the rental hand/guardrail with frosted in-fills in place which holds up well and creates a sense of privacy. Highmark can change these in-fills for a cost. There would be no up-charge on a purchase if a standard acrylic color is utilized.

Highmark does not supply the carpet for the upper deck surface.

Highmark does not supply the carpet, but yes, the staircases can be carpeted by the Exhibit Builder/Designer or Event Agency.

Yes, per code, Highmark staircases are “closed tread”.

Highmark designs and builds to current International Building Codes (IBC).

Yes, a whole line of parts/components are available for purchase to supplement existing ExpoDecks.

Yes, by virtue of the system design, existing ExpoDeck can be reconfigured into different shapes or sizes via new purchase or rental of secondary components/documentation.

Yes, Highmark offers both refurbishment and upgrade programs. Your Highmark sales representative can guide you through either program, including what’s required, what’s offered, timing, pricing, and more.

1. LED lit ceiling systems
2. Outside and inside beam fascia
3. Custom hand/guardrail
4. Custom staircase treads
5. Custom bracketry for 3rd party exhibitory connection
6. MAX multi-wall frames for underneath or on top of ExpoDeck (in lieu of upper guardrail if necessary)
7. SuperMAX external structures either wrapping around or connected to ExpoDeck
